TWINTIER

RB613T

Large Jaw model.
Built to handle a wide variety
of rebar diameters and combinations.

Demo request

Main features

  • Tying speed
    0.6 sec
    5 times faster than hand tying
  • Tying Tightness
    50% up
    compared to conventional rebar tying tool
  • Tying knot
    1/2
    than conventional rebar tying tool

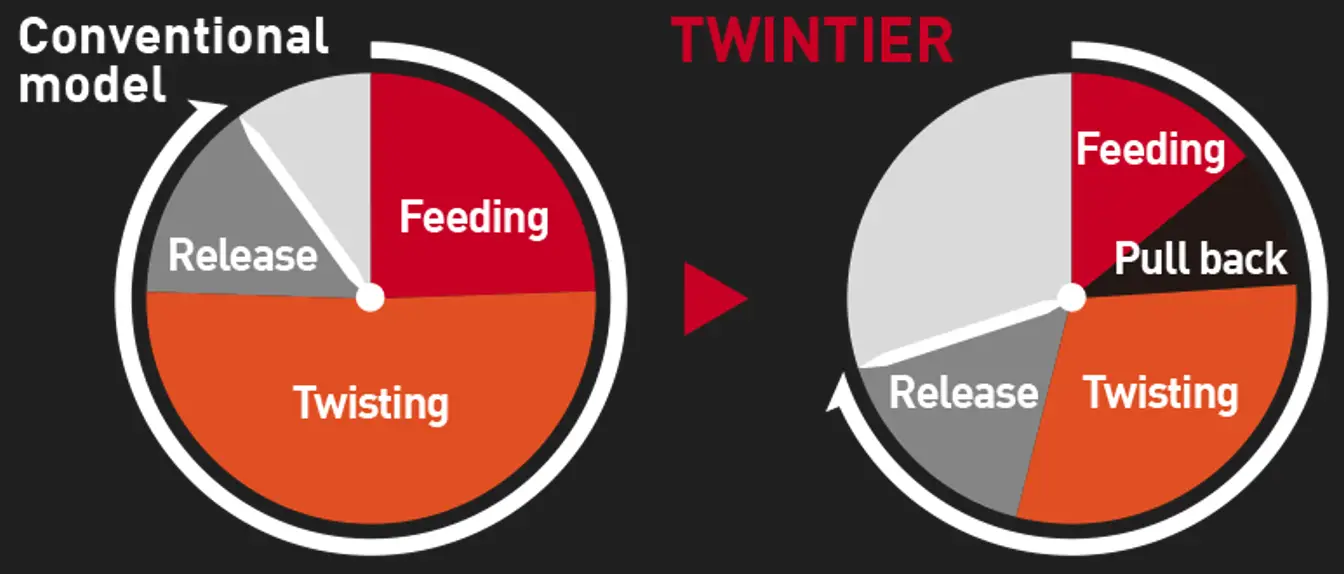

  • Tying speed 0.6 sec 5 times faster than hand tying

    Tying speed 0.6 sec.
    5 times faster than hand tying.

    Rebar tying tools make rebar tying easy with a single trigger pull—simple, yet transformative.
    Backed by 30 years of continuous development, MAX TWINTIRE’s dual-wire system delivers solid, consistent ties in less than 0.6 seconds—faster and more efficient than conventional way.

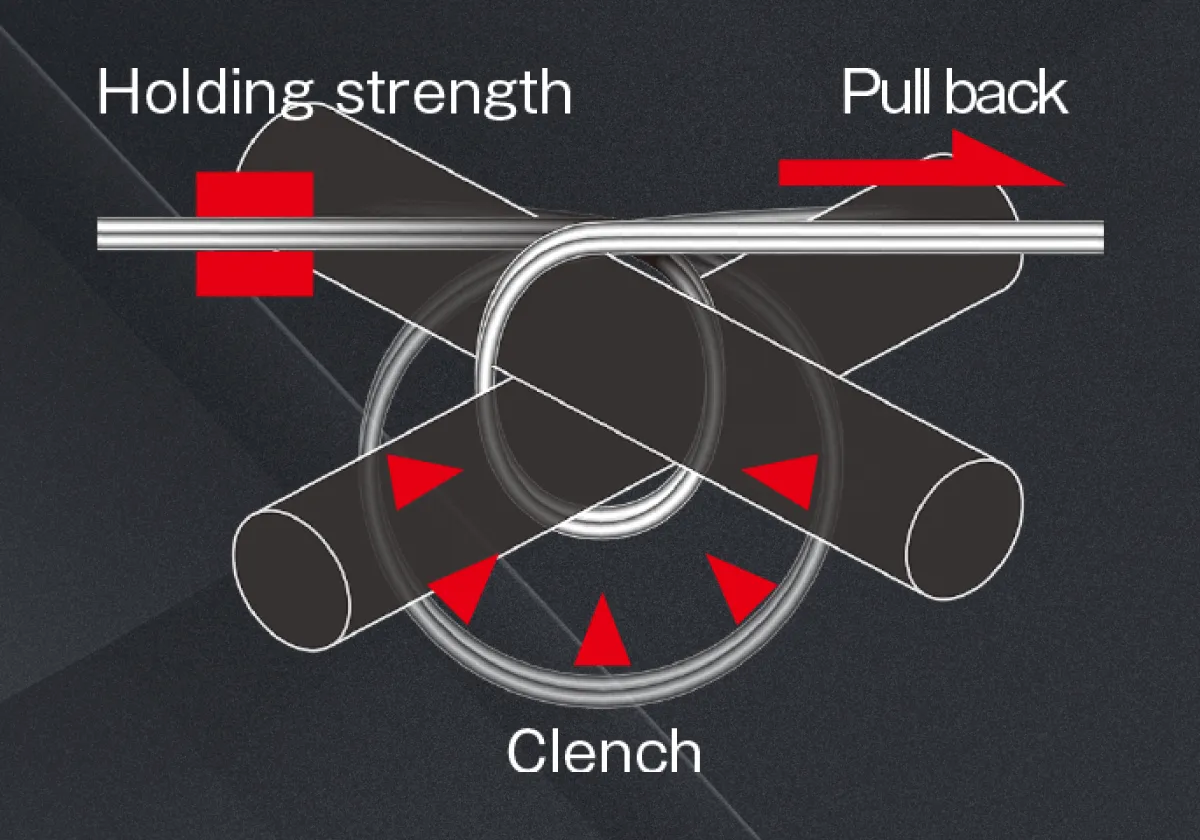

  • Tying Tightness 150% up than conventional model Same tying tightness

    Tying Tightness 50% up than
    conventional rebar tying tool.

    A "Wire Pullback mechanism" pulls wires efficiently to strengthen tying force while using less wire.

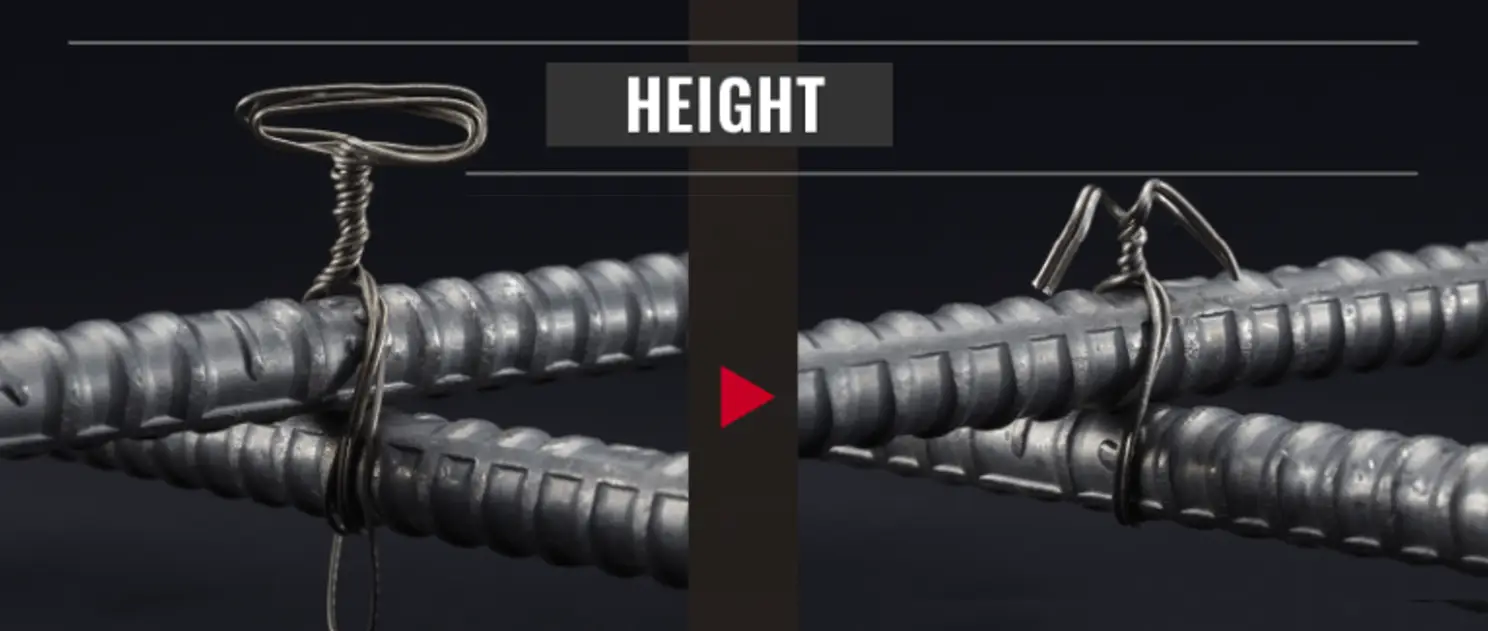

  • Tying knot 1/2 than conventional tool.

    Tying knot 1/2
    than conventional rebar tying tool.

    A "Wire bending mechanism" minimizes the tie height.

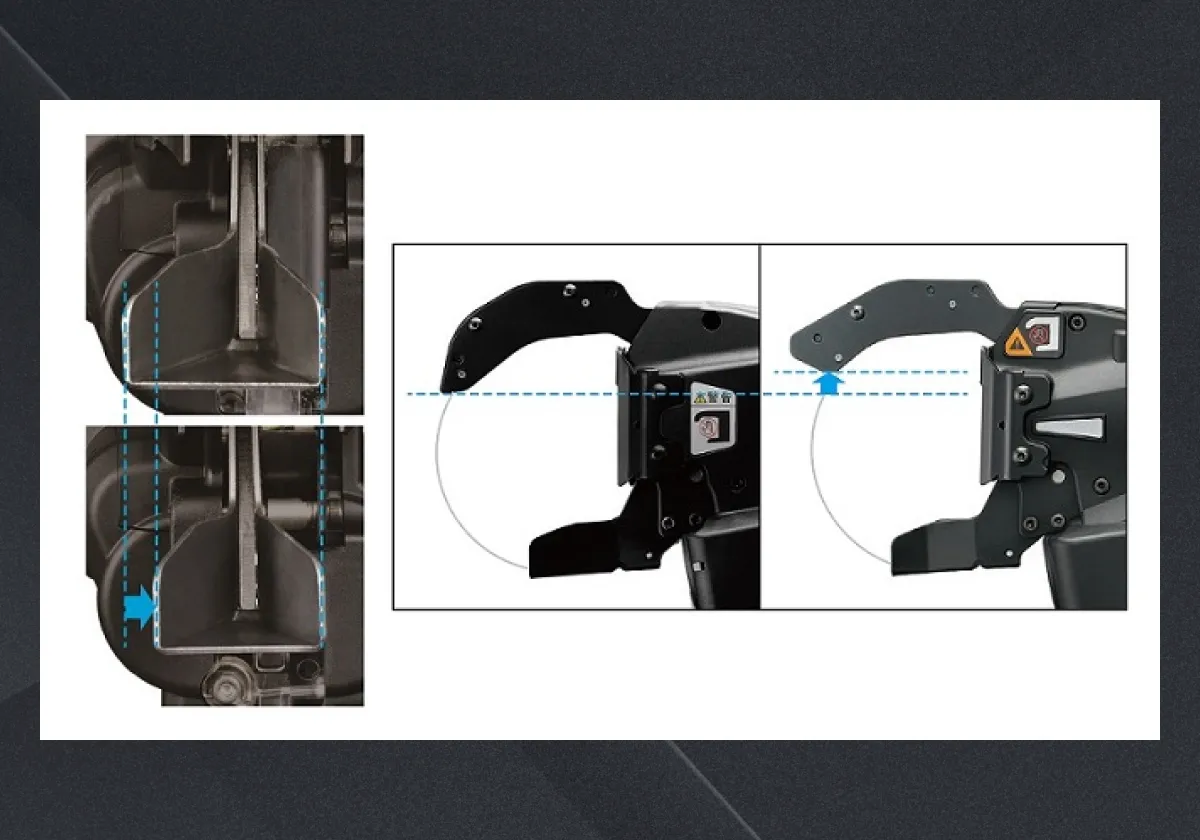

  • Easy Insertion ＆ removal by new arm shape

    Easy Insertion ＆ removal by new arm shape.

    ・The arm of RB613T is wider than that of RB611T.
    ・The Curl guide of RB613T become smaller.

Other features

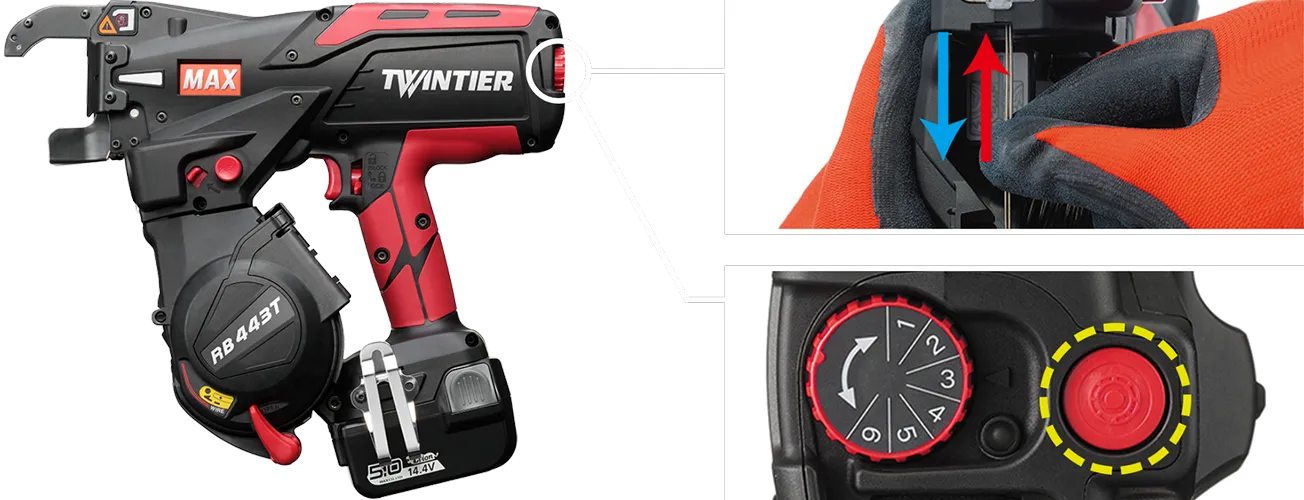

Wire load assist function

During tie wire replacement, loading can be done without pressing the release button, eliminating the risk of forgetting to reset it.
This makes wire replacement on-site smoother and more efficient.
Wire load assist function

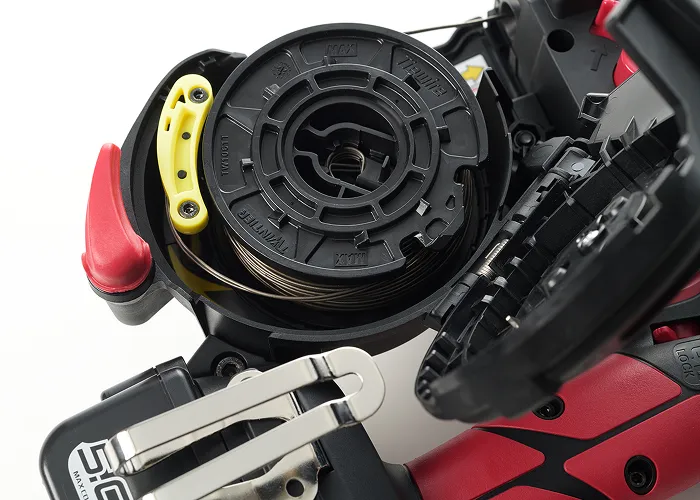

Wire feeding guide

Wire feeding guide

With a ‘Wire Feed Guide’ equipped with rollers that smoothly feed the wire, we have fundamentally re-examined all aspects of wire feeding, retracting, and twisting, enhancing wire handling.
  • Enlarged center mark
    Enlarged center mark
    Making it easier to target the center of the rebar.
  • Shortened trigger
    Shortened trigger
    Reduced the strain on the finger during use.
  • Belt hook is included
    Belt hook is included
    This can be placed on the 16mm diameter rebar.

Applicable rebar size

※There are cases where the rebars cannot be tied due to conditions such as they are far from each other.
2 Bars
2 Bars
3 Bars
3 Bars
4 Bars
4 Bars
Minimum
D16×D16
#5×#5
D10×D10×D10
#3×#3×#3
D10×D10×D10×D10
#3×#3×#3×#3
Maximum
D32×D29
#10×#9
D35×D19×D19
#11×#6×#6
D19×D19×D19×D19
#8×#8×#5×#5

Tiewire

MAX tiewire is engineered to maximize the performance of rebar tying tools,
with a wide lineup designed to suit a broad range of jobsites.

  • TW1061T
    Annealed wire
    for TWINTIER series.
    Wire diameter | φ1.0mm | 19Ga
  • TW1061T-EG
    Electro galvanized wire
    for TWINTIER series.
    Wire diameter | φ1.0mm | 19Ga
  • TW1061T-PC
    Plastic coated wire
    for TWINTIER series.
    Wire diameter | φ1.1mm | 19Ga
  • TW1061T-S
    Stainless wire
    for TWINTIER series.
    Wire diameter | φ1.0mm | 19Ga
  • TW1061T USAFor US Market
    Annealed wire
    made from Buy America-certified steel
    for TWINTIER series.
    Wire diameter | φ1.0mm | 19Ga
  • TW1061T-PC USAFor US Market
    Plastic coated wire
    made from Buy America-certified steel
    for TWINTIER series.
    Wire diameter | φ1.1mm | 19Ga

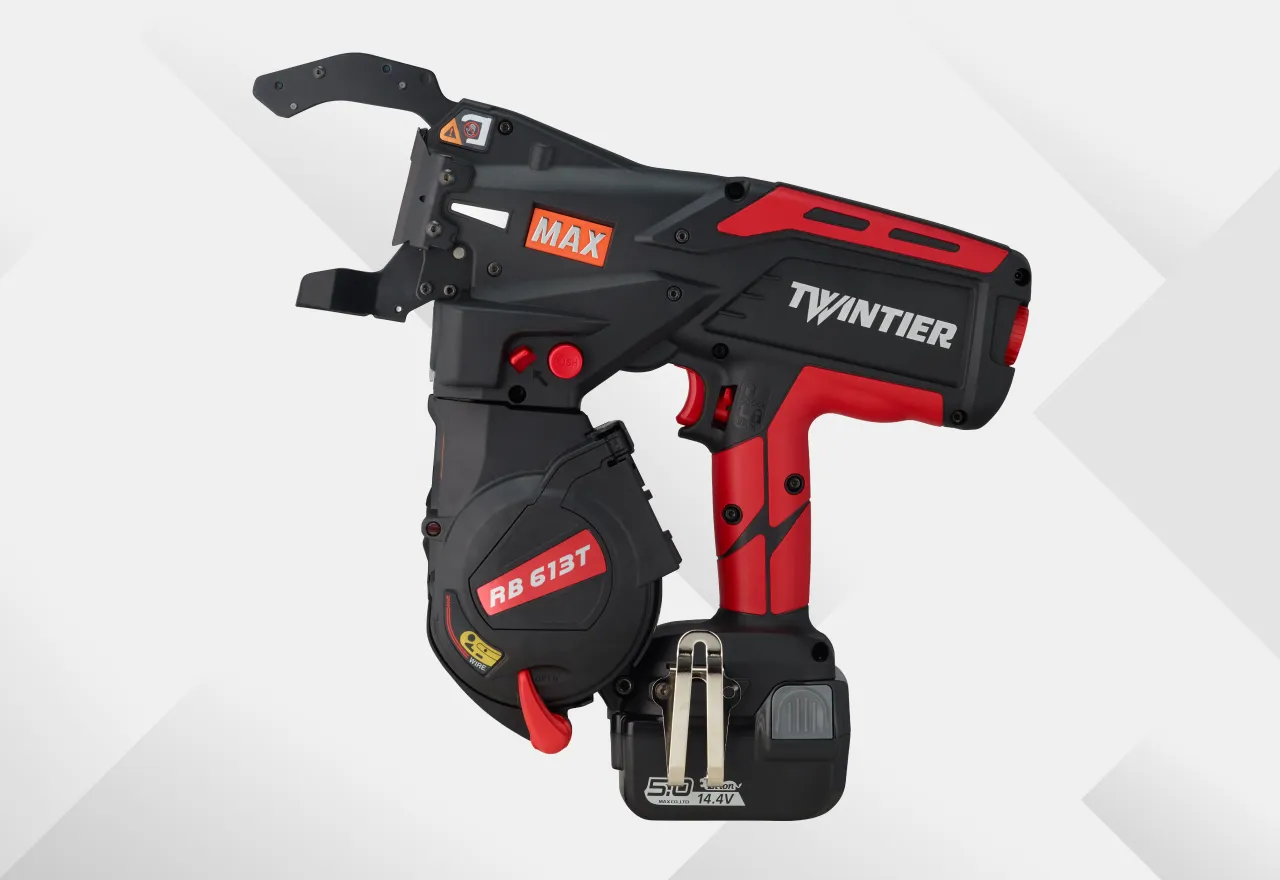

Specifications

Specifications
  • Weight
    2.5kg / 5.6lbs
  • Dimensions
    295mm(H)x125mm(W)x360mm(L)
    11 1/2"(H)x4 7/8"(W)x14 3/16"(L)
  • Minimum ties per coil
    115 ties
  • Maximum ties per coil
    205 ties
  • Applicable wire product
    TW1061T(1.0mm/19Ga)
    TW1061T-EG(1.0mm/19Ga)
    TW1061T-PC(1.1mm/19Ga)
    TW1061T-S(1.0mm/19Ga)
    TW1061T USA(1.0mm/19Ga)
    TW1061T-PC USA(1.1mm/19Ga)
  • Applicable rebar size
    Minimum: D16×D16 / #5×#5
    Maximum:     D32×D29 / #10×#9
  • Ties per charge
    5,000 ties
  • Tie speed
    Less than 0.6 sec
  • Battery charge time
    Approx. 80 minutes full charge
    (approx. 60 minutes 80%)
  • Battery
    JPL91450A
  • Charger
    JC925A
