RB401T-E
Stand-Up model.
Health and safety solution of rebar tying
for slab application.
Main features
-
Reduces back strain
Up to 88% less effort
Up to 48% less compression -
Ergonomic design
Adjustable handle
Trigger-less Technology - Tying knot1/2than conventional rebar tying tool
-

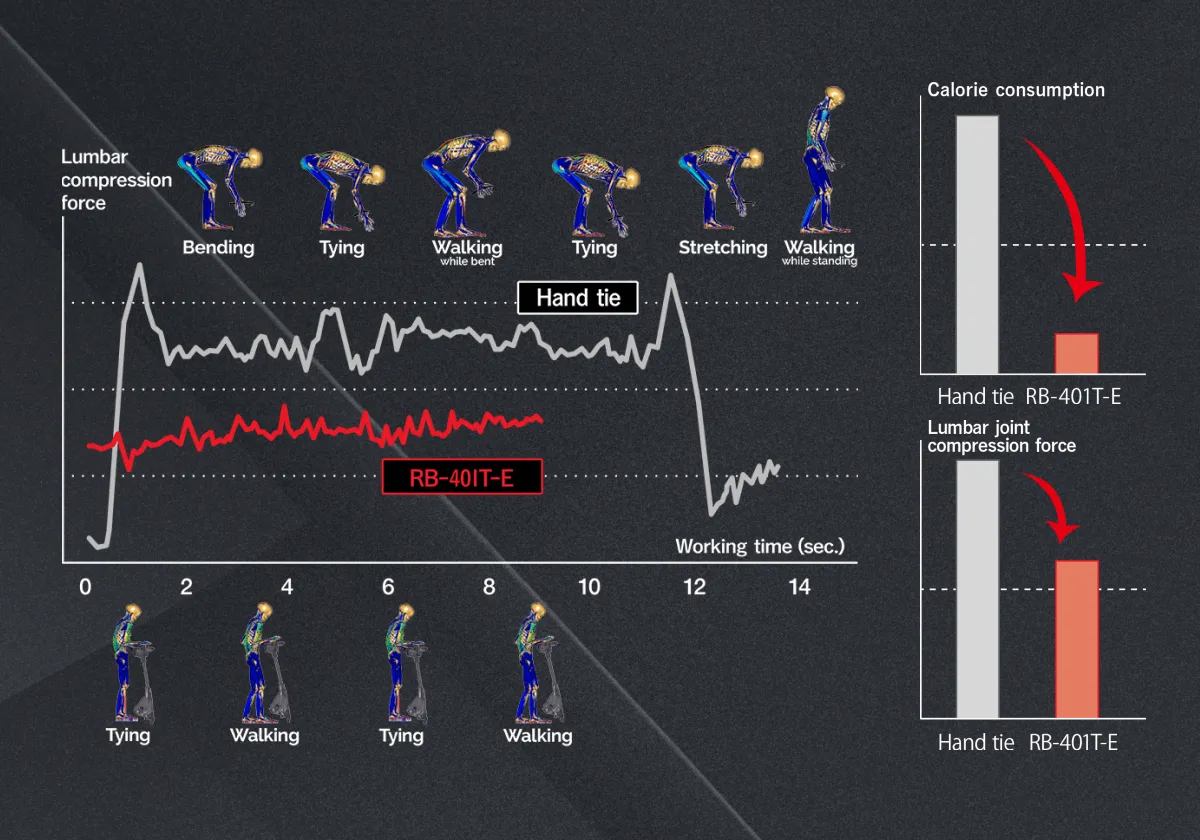

Reduces back strain
Changes in lumbar compression force during tying motion.Up to 88% Less EffortCalorie consumption has been reduced by 50% because the tool enables you to tie rebar without bending over.Up to 48% Less CompressionExtended Frame makes it possible to tie rebar cross sections without bending over. Eliminates the hassle of bending over to tie rebar and alleviate painful lumbar compression. -

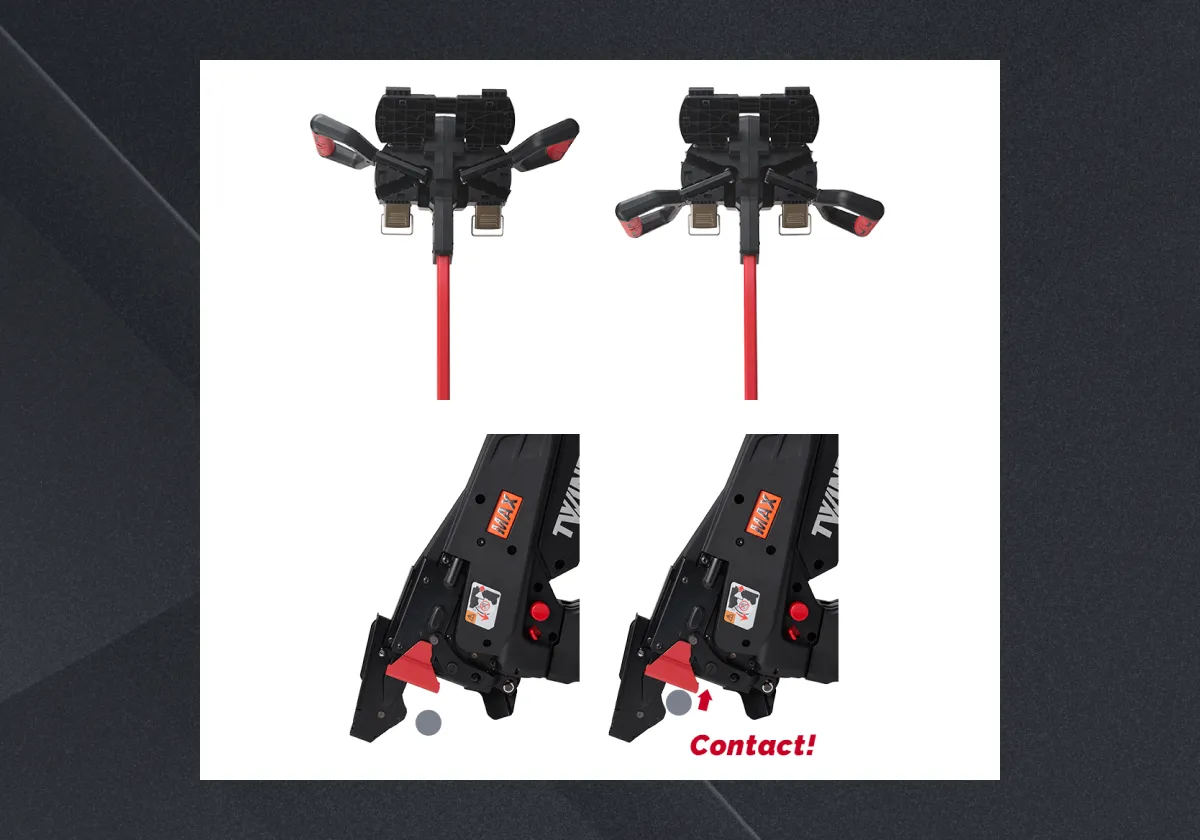

Ergonomic design
Adjustable handleHandles are adjustable to 2 levels
Two handed operation reduces effort and moving the tool.
Handles are adjustable to 2 levels of position.Trigger-less TechnologyAn automatic contact mechanism allows the tool to instantly tie when pushed down over a rebar intersection.
No trigger pulling on this tool. -

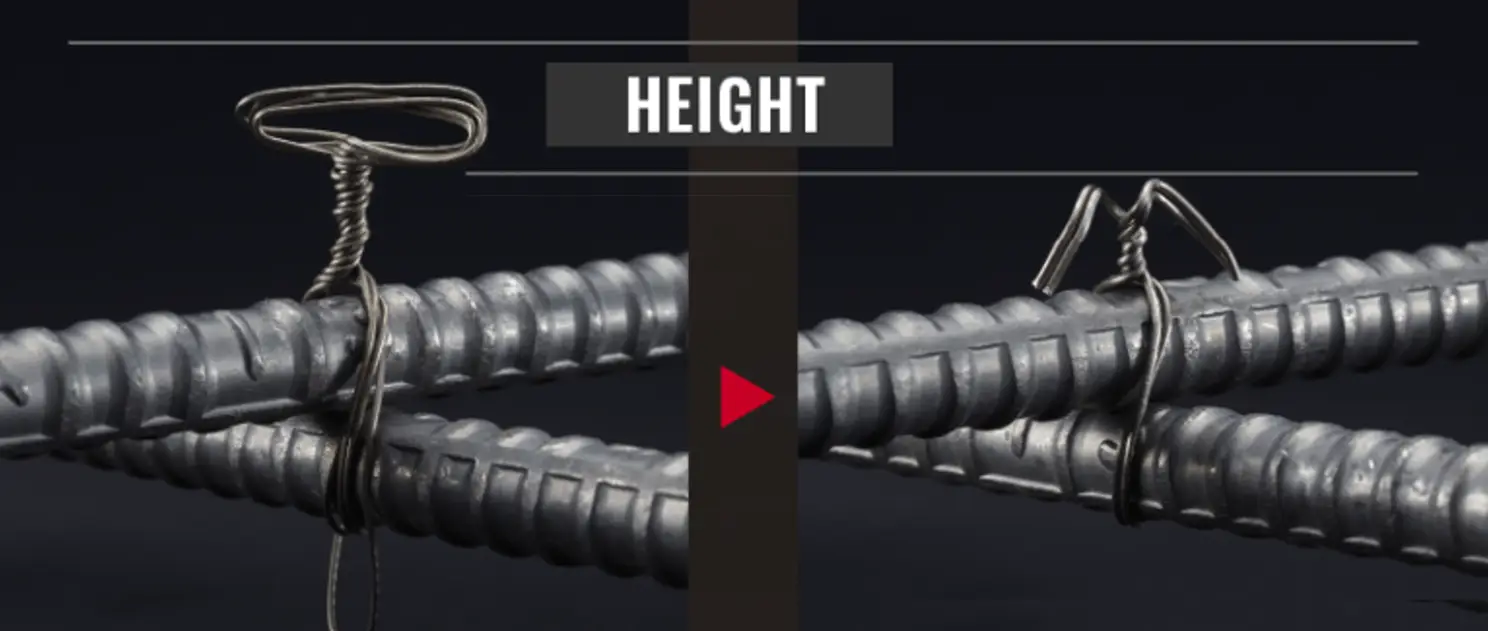

Tying knot 1/2
than conventional rebar tying tool.A "Wire bending mechanism" minimizes the tie height.
Other features
-

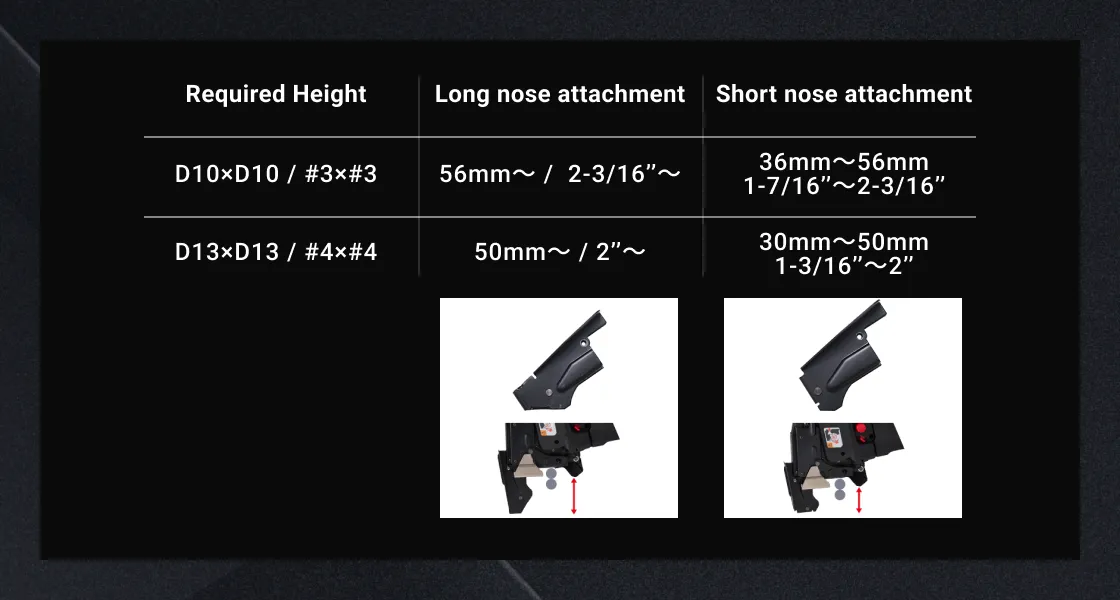

2 types nose attachmentThere are two nose attachment available depending on the clearance between the rebar and the ground. -

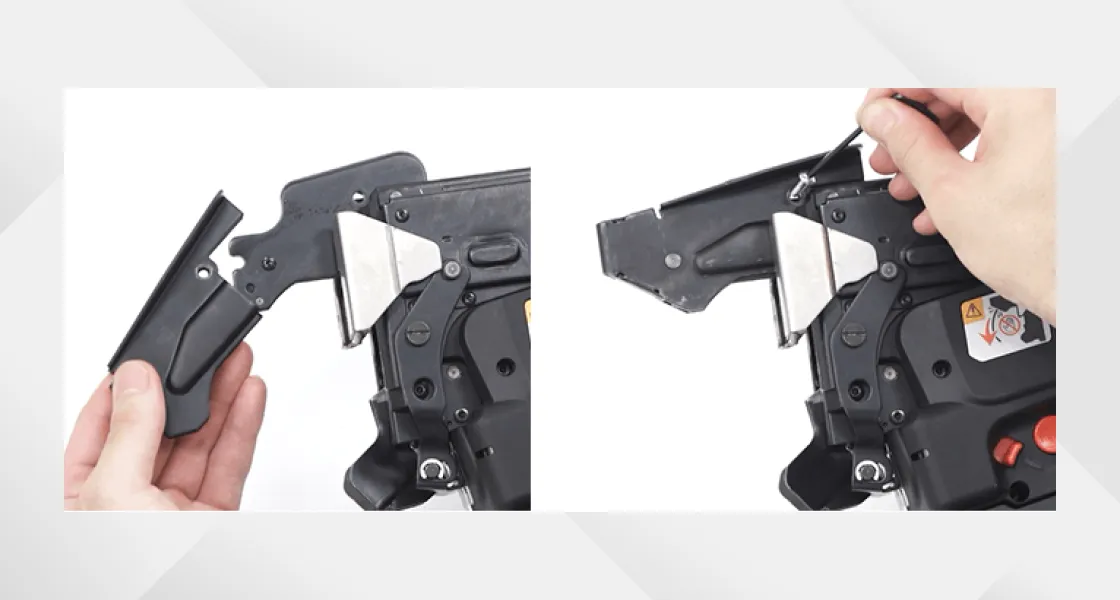

Replaceable nose attachmentOnce a nose is worn out, simply replace the attachment. No need for repair.
Applicable rebar size
※There are cases where the rebars cannot be tied due to conditions such as they are far from each other.
Tiewire
MAX tiewire is engineered to maximize the performance of rebar tying tools,
with a wide lineup designed to suit a broad range of jobsites.
-
TW1061TAnnealed wire
for TWINTIER series.Wire diameter | φ1.0mm | 19Ga -
TW1061T-EGElectro galvanized wire
for TWINTIER series.Wire diameter | φ1.0mm | 19Ga -
TW1061T-PCPlastic coated wire
for TWINTIER series.Wire diameter | φ1.1mm | 19Ga -
TW1061T-SStainless wire
for TWINTIER series.Wire diameter | φ1.0mm | 19Ga -
TW1061T USAFor US MarketAnnealed wire
made from Buy America-certified steel
for TWINTIER series.Wire diameter | φ1.0mm | 19Ga -
TW1061T-PC USAFor US MarketPlastic coated wire
made from Buy America-certified steel
for TWINTIER series.Wire diameter | φ1.1mm | 19Ga

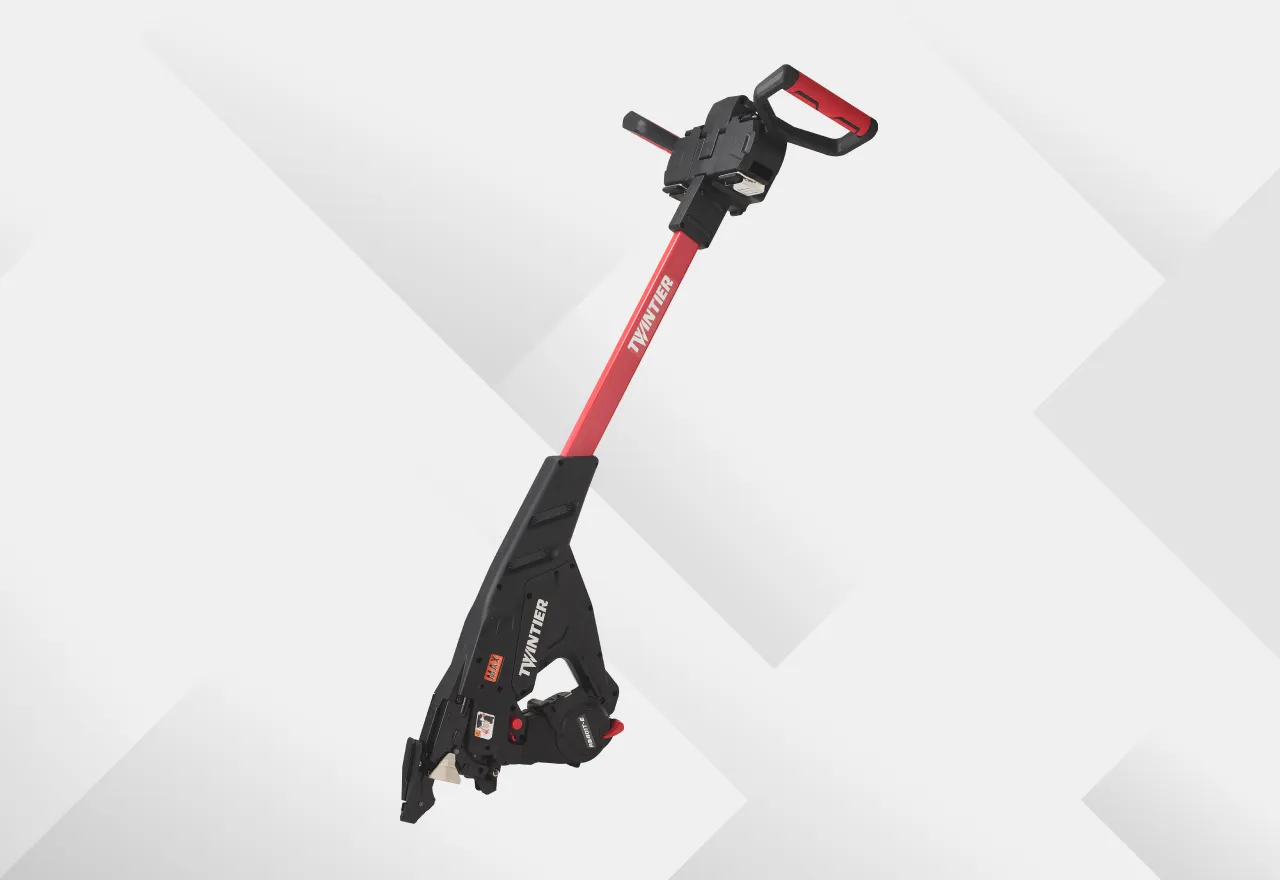

Specifications
- Weight4.6kg / 10.2lbs
- Dimensions322mm(H)x408mm(W)x1,100mm(L)
12 3/4"(H)x16"(W)x43 3/8"(L) - Minimum ties per coil155 ties
- Maximum ties per coil260 ties
- Applicable wire productTW1061T(1.0mm/19Ga)
TW1061T-EG(1.0mm/19Ga)
TW1061T-PC(1.1mm/19Ga)
TW1061T-S(1.0mm/19Ga)
TW1061T USA(1.0mm/19Ga)
TW1061T-PC USA(1.1mm/19Ga) - Applicable rebar sizeMinimum: D10×D10 / #3×#3
Maximum: D20×D20 / #6×#6 - Ties per charge4,600 ties
- Tie speedApprox. 0.5 sec
- Battery charge timeApprox. 80 minutes full charge
(approx. 60 minutes 80%) - BatteryJPL91450A
- ChargerJC925A
